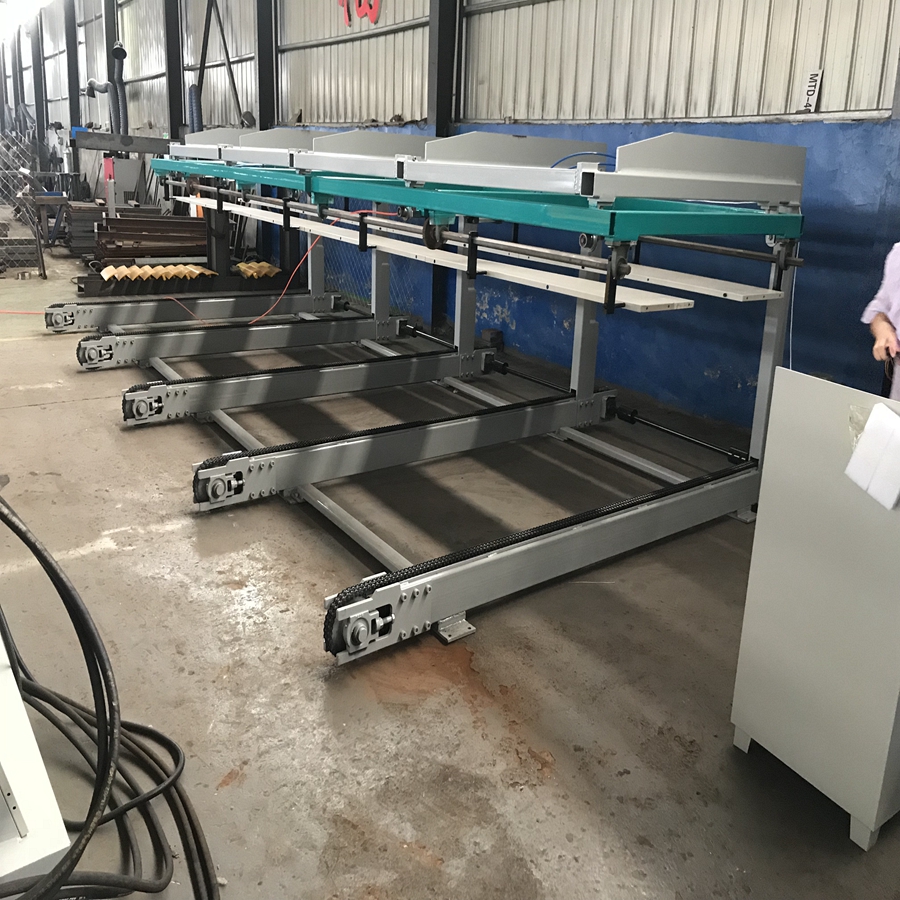

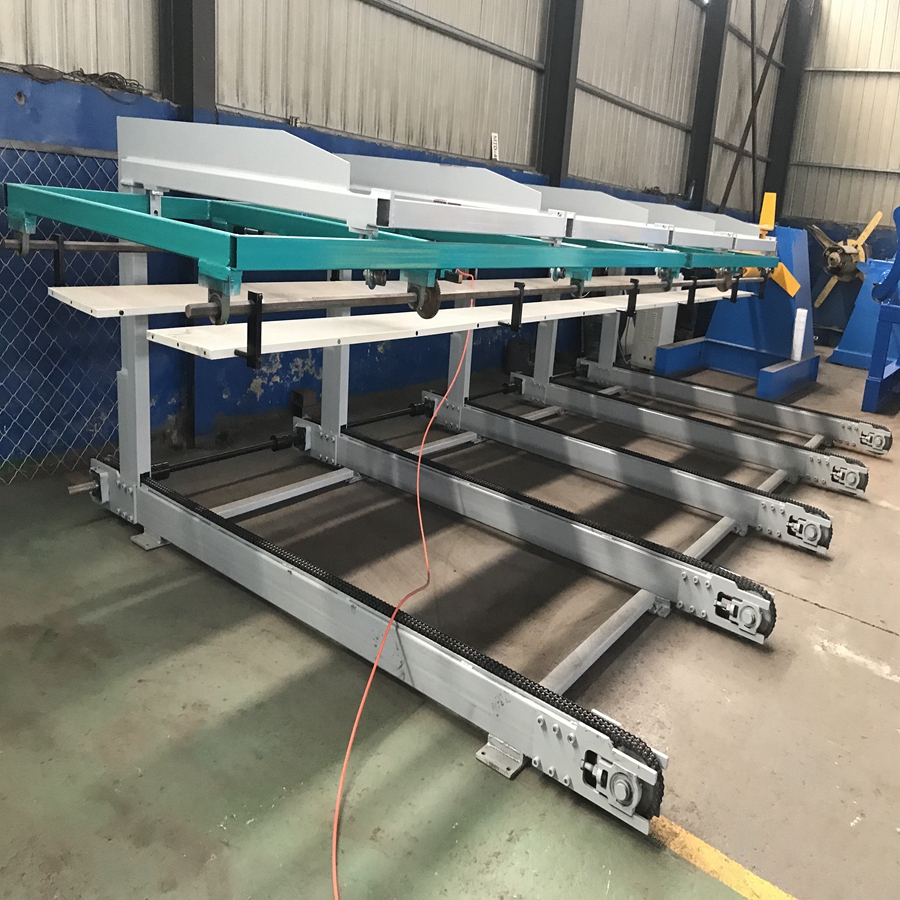

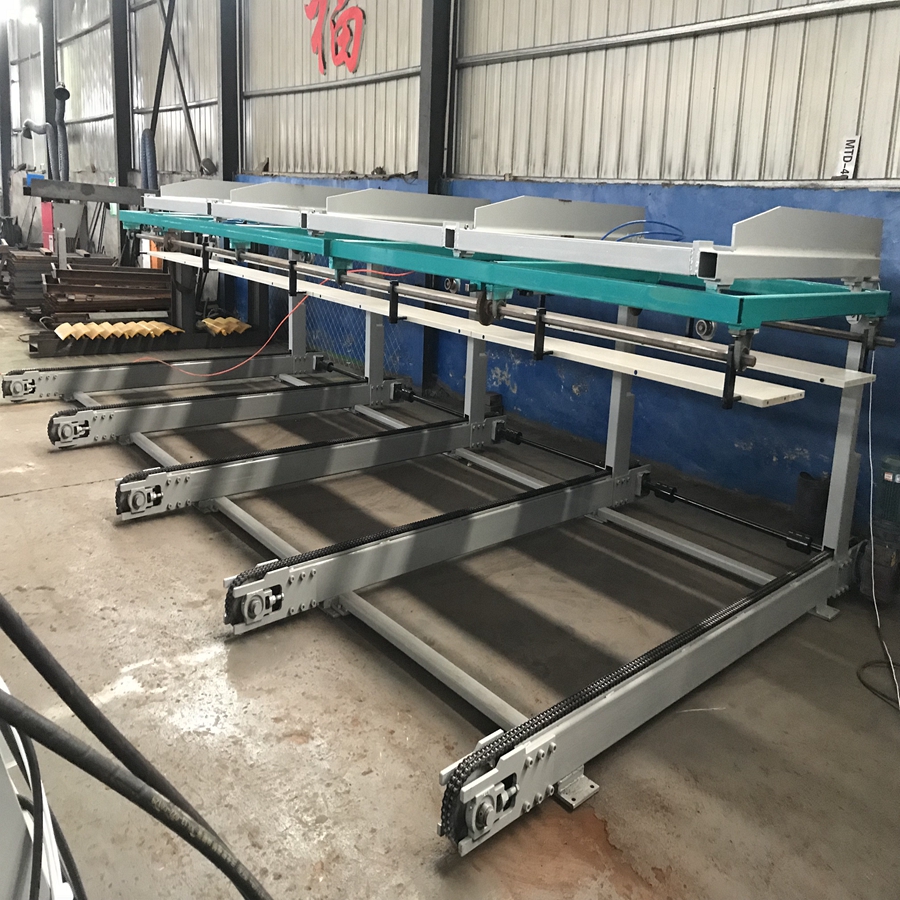

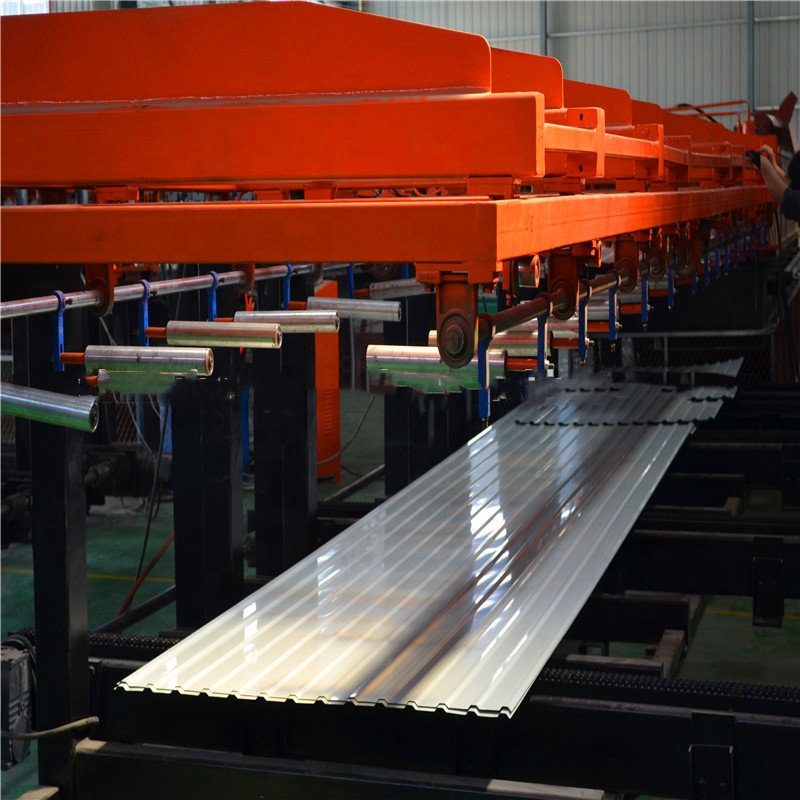

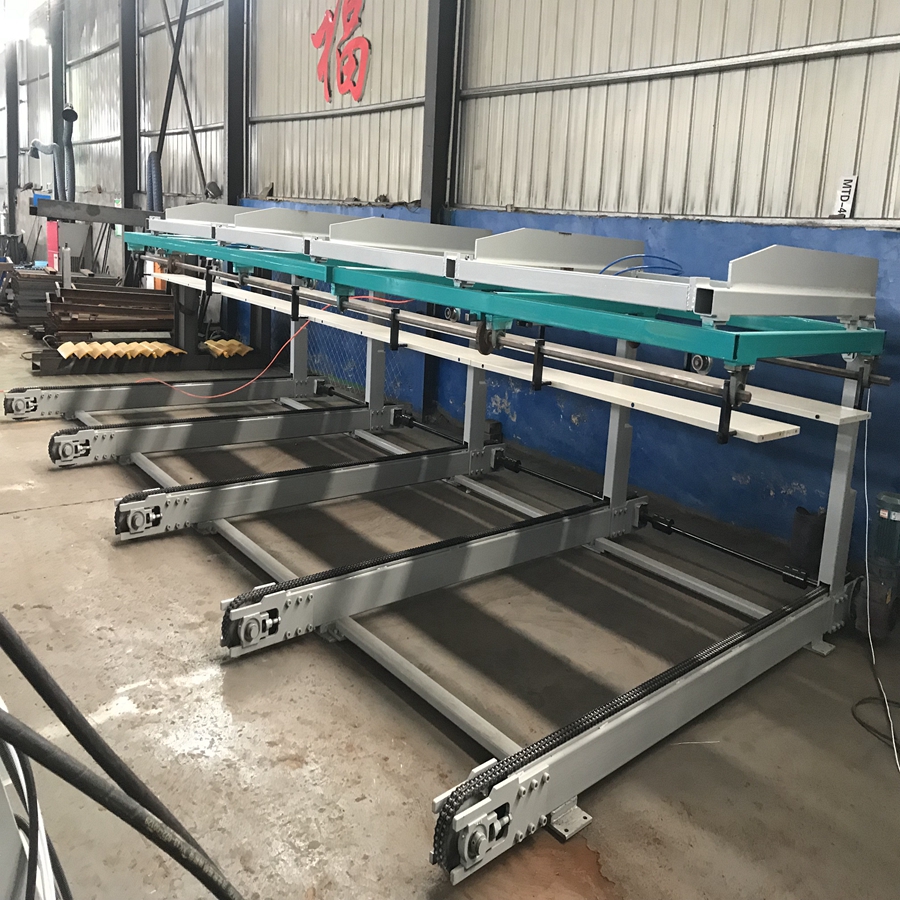

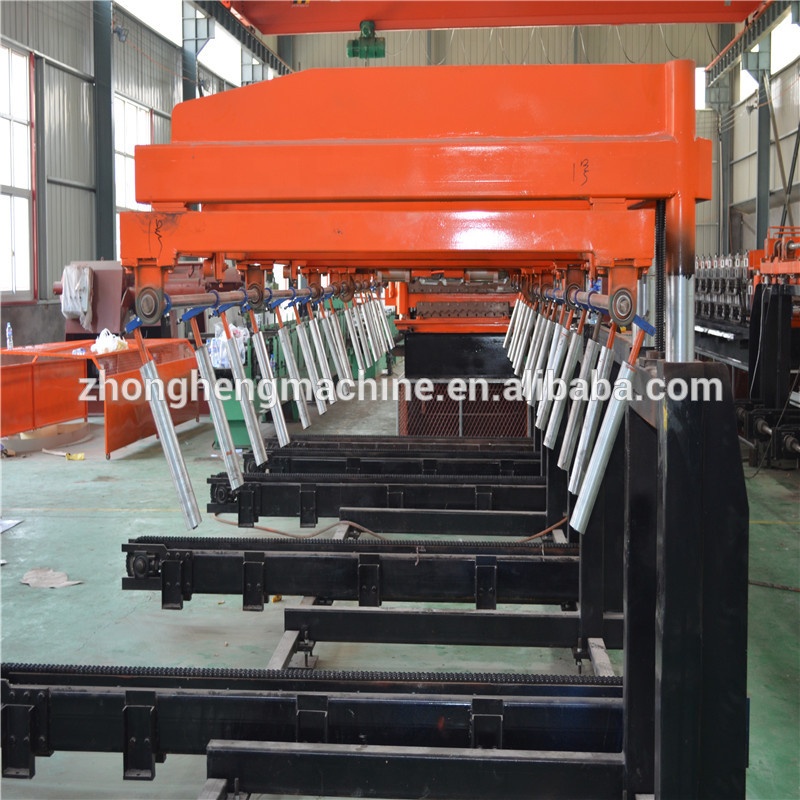

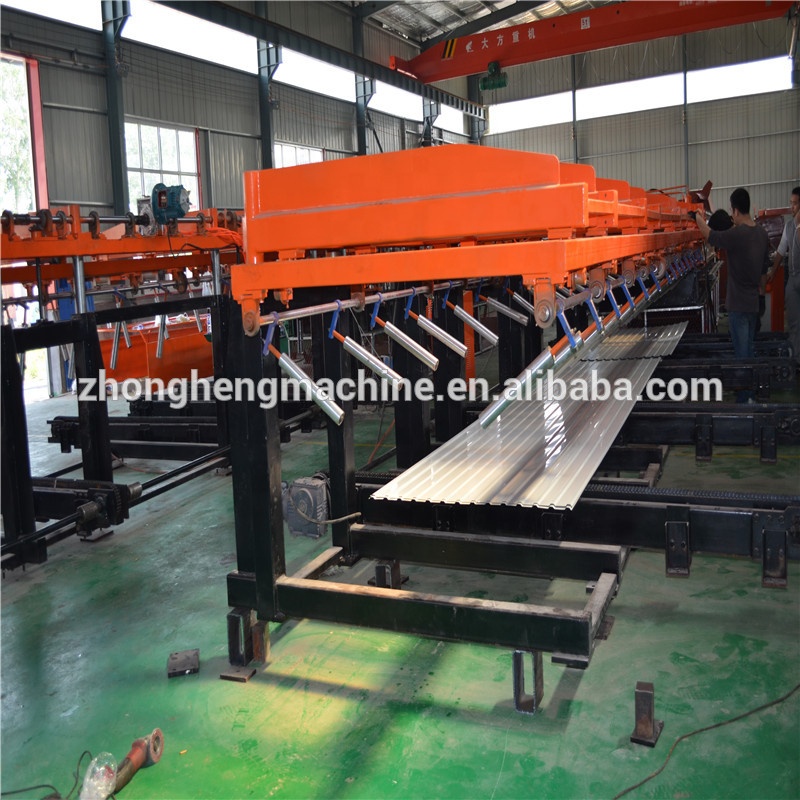

Product Name:pneumatic control Auto stacker for roofing panels

Auto Stacker for Roofing sheet Roll forming machines

ZHONGHENG also have Coil Process Equipments(Slitting Line, Cut To Length Line), C Purlin Roll Forming Machine, Roof Sheet Roll Forming Machine. Wall Cladding Roll Forming Machine, Steel Deck Roll Forming machine, etc for One-Stop service for your steel structure plan.

Specification

1) Run out motor power: 0.75KW

2) Max speed: 36m/min

3) Max stacking length: 6m

4) Max stacking thickness: 300mm

5) Max stacking weight: 3tons

6) Frequency convertor: Mitsubishi

7) Computer PLC. modles7-200, Siemens

8) Computer operation screen is TD200 fromSiemens

9) Dimension: 6331×2555×1485(mm)

Chart

A—turning cylinder

B—transmitting rolls

C—decreasor

D—chains wheel

E—fixed sheets-blocking panel

F-unlash the supporter panel

G- output chains

H—output stacks

I—series connection panel-

J—C shape support

Trade Terms

1.Payment Term:30% paid by T/T as down payment,Balance 70% after inspection before delivery. After finish production, we will inspect the machine and inform the buyer, the buyer come inspect goods, then pay the balance before shipping.

2.Delivery Time:We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .

3.Port of Loading: Tianjin

After sale service

1.Warranty: We provide one year free warranty , and technical support for entire life .

During the warranty, the replaceable parts are free,buyers need to pay for the shipping .We will also provide you instruction manual to show you how to operate the machines.

2.Installation and trainning:We could send technician to your country to install machine if you need. The buyer need to pay extra cost, including:visa, round trip tickets, accommodation, salary of USD 100~120 per day.
