Components:steel-embossing-machine
Specifications

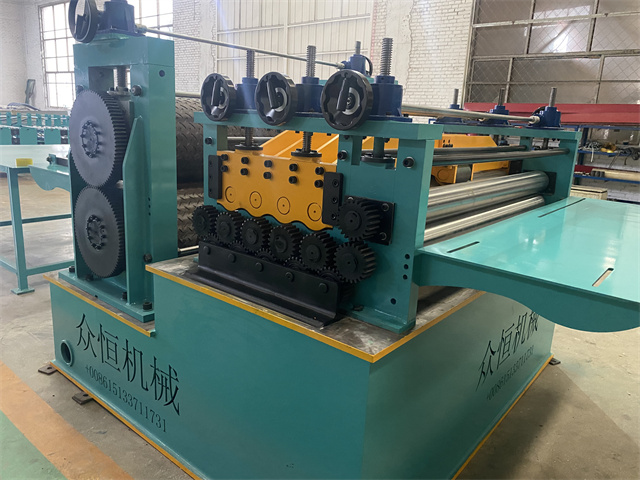

Technical Specifications for Embossing and leveling machine | ||||
1 | Raw Material | Type | GI,Hot steel | |
Width | 1600mm | |||
Feeding width | 1-4mm | |||
2 | Power
| Motor power | 15 kw with 108#reducer | |
Voltage | 380V 50Hz 3phases | |||
Transmission type | Gear | |||

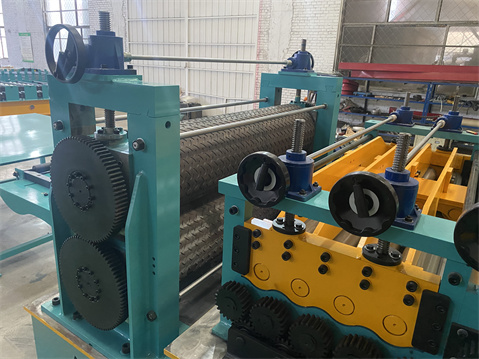

3 | Diameter of embossing shaft | 400mm | ||
Material of shaft | 42Crmov | |||
Thickness for the plate | 120mm | |||
Lifting machine | Adjustable with 100 motor reducer | |||

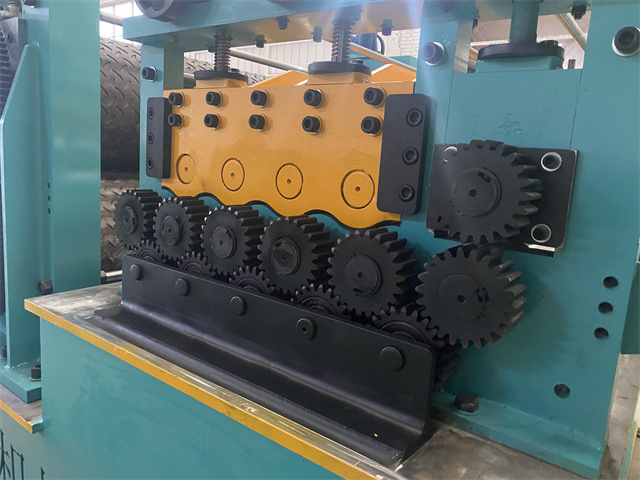

4 | Leveling rollers | Upper 5 rows Bottom 6 rows | ||
5 | Thickness of plate for leveling |
50mm | ||
6 | Main motor for leveling |
7.5kw | ||
7 | Diameter of Shaft for leveling |
125mm solid with quenching process
| ||
8 | Receive table | 2m | ||
