Components:Decoiler, Main Machine, PLC, Hydraulic System, Run out Table
Corrugated Sheet Forming Machine 18-65-1060

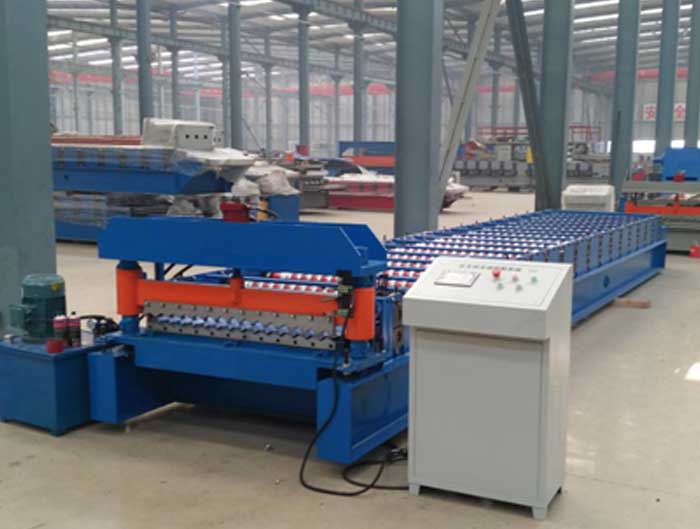

Corrugated Sheet Roll Forming Machine is a special machine, can produce various width of sheets without any mould change, only adjusting the feeding guiding.

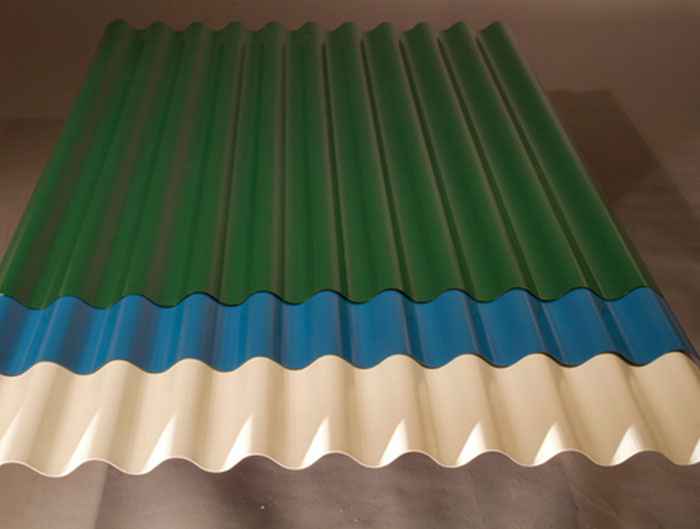

Corrugated sheet is a very important cladding element for commercial, residential and industrial roofing and walling. The traditional shape of corrugated material is the round wavy style derived from sinus curve. And today a lot of corrugated profiles come out to meet the needs of different applications. If you have your conjugation profile, let's customize the corrugated sheet roll forming machine for you. Furthermore , ZHONGHENG have several design of metal sheet roll forming machines for corrugated sheets. And we are the manufacturer of China Roll Forming Machine
Traditional corrugated profile is 914mm as the feeding width, 762mm as the covering width, 76.2mm as the pitch(distance between two consecutive curves), and 18mm as the depth(wave height). Also, there are mini corrugated profile, deep corrugated profile, etc. In South African, customer always buy a double layer roll forming machine for IBR sheets and corrugated sheets instead of IBR sheet roll forming machine and corrugated sheets roll forming machine. Finally to save money and factory space.
| NO. | ITEM | PARAMETER | NOTE | |
| 1. | Suitable material | Type | Pre-painted sheet, Galvanized sheet | |
| Width(mm) | 1200mm | |||
| Thickness(mm) | 0.3-0.8mm | |||
| Yield stress(mm) | G220-G300 | |||
| 2. | Product specifications | Detail as the attached file | ||
| Length | Any length | |||
| 3. | Power requirement | Type | 380v/3ph/50hz | Motor brand shanghai Lichao |
| Main Motor power | 4kw | |||
| Cutter power | 4kw | |||
| 4. | Forming speed(m/min) | 10-15m/min | Not include the time of cutting | |
| 5. | Manual Decoiler(Optional) | Type | Manual | |
| Max capacity | 5t | |||
| Suitable coil OD(MM) | 1200 | |||
| Suitable coilID(MM) | 508 | |||
| 6. | Forming stand | 18 | Depend on actual design | |
| 7. | Thickness of structure | 16mm | ||
| 8. | Forming shaft diameter(mm) | 70 solid | ||
| 9. | Type of cutting | Roll formed and length-set cutting | ||
| 10. | Control system | Panasonic PLC and inverter | ||
| 11. | Install dimension(depend on the final design) | 9.2m×1.5m×1.3m | Without panel length | |
| 12. | Total weight(Approx) | 5.3T | Depend on final design | |
This roofing is the most popular model of roofing, its widely used in roofing and wall of the workshop.
There is two cylindas on the cutting head of this machine, the hydraulic oil is running into the cylinda, control the cutter easily.
