Components:Decoiler, Main Machine, PLC, Hydraulic System, Run out Table

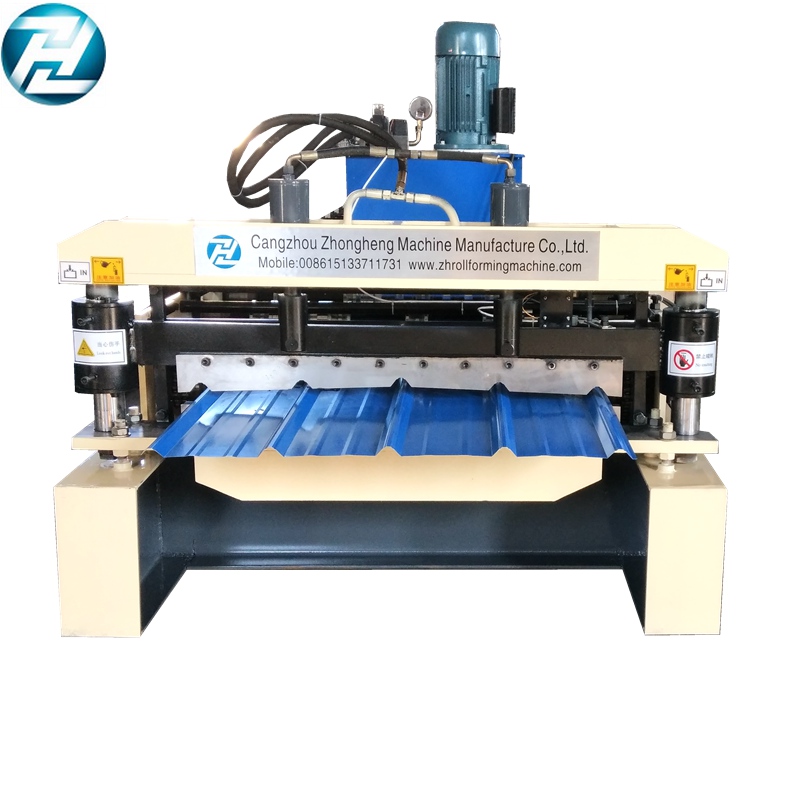

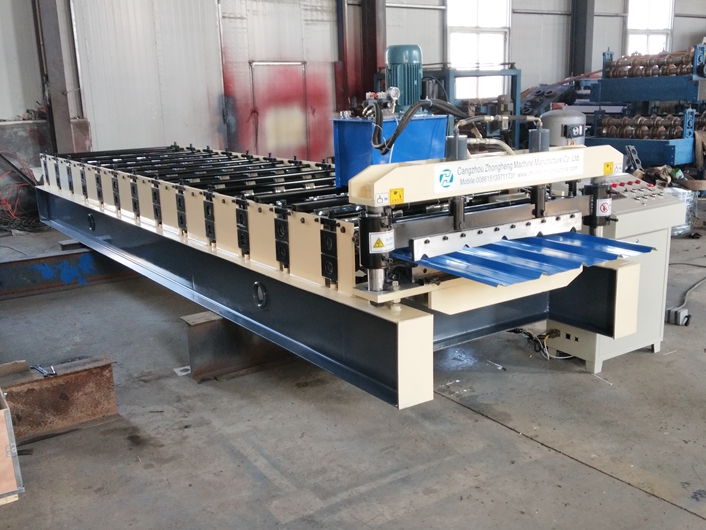

US Popular Ag panel metal roofing roll forming machine
Where to use the roofing panel roll forming machine?
People use Roofing Sheet Machine, Such as Roofing Sheet Roll Forming Machine, Trapezoidal Sheet Roll Forming Machine to produce metal sheet for industrial, commercial and residential roof cladding. Although there are numerous profiles of roofing sheet, the process of forming is the same. Coils (GI coils, PPGI coils, GL coils, PPGL coils, etc) go through decoiling, roll forming, cutting and then come out the desired roof products.
| NO. | ITEM | PARAMETER | NOTE | |
| 1. | Suitable material | Type | Pre-painted sheet, Galvanized sheet | |
| Width(mm) | 1250mm | |||
| Thickness(mm) | 0.3-0.8mm | |||
| Yield stress(mm) | G220-G300 | |||
| 2. | Product specifications | Detail as the attached file | ||
| Length | Any length | |||
| 3. | Power requirement | Type | 380v/3ph/50hz | Motor brand shanghai Lichao |
| Main Motor power | 4kw | |||
| Cutter power | 4kw | |||
| 4. | Forming speed(m/min) | 20m/min | Not include the time of cutting | |
| 5. | Manual Decoiler(Optional) | Type | Manual | |
| Max capacity | 5t | |||
| Suitable coil OD(MM) | 1000 | |||
| Suitable coilID(MM) | 508 | |||

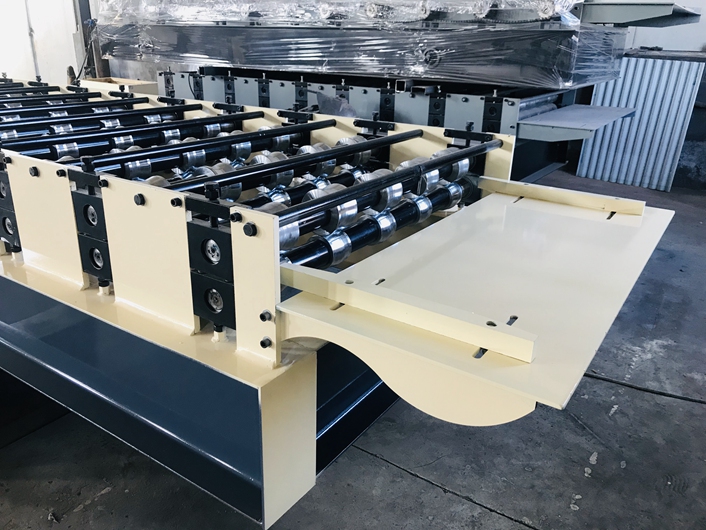

| 6. | Forming stand | 18 | Depend on actual design | |
| 7. | Thickness of structure | 16mm | ||
| 8. | Forming shaft diameter(mm) | 70 solid | ||
| 9. | Type of cutting | Roll formed and length-set cutting | ||
| 10. | Control system | Panasonic PLC and inverter | ||
| 11. | Install dimension(depend on the final design) | 9.2m×1.5m×1.3m | Without panel length | |
| 12. | Total weight(Approx) | 5.2T | Depend on final design | |
IF YOU ARE INTERESTED IN OUR IBR SHEET MACHINE, OR ANY OTHER ROLL FORMING MACHINE(ROOF MACHINE, PURLIN ROLL FORMING MACHINE, FLOOR DECKING MAKING MACHINE, ETC) OFFERED BY ZHONGHENG, PLEASE FEEL FREE TO CONTACT US.
