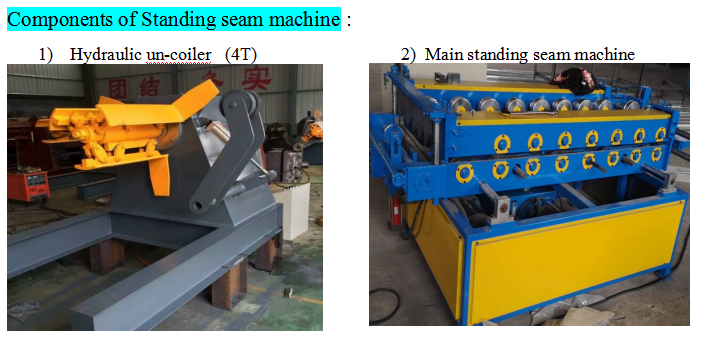

Components:portable standing seam forming machine

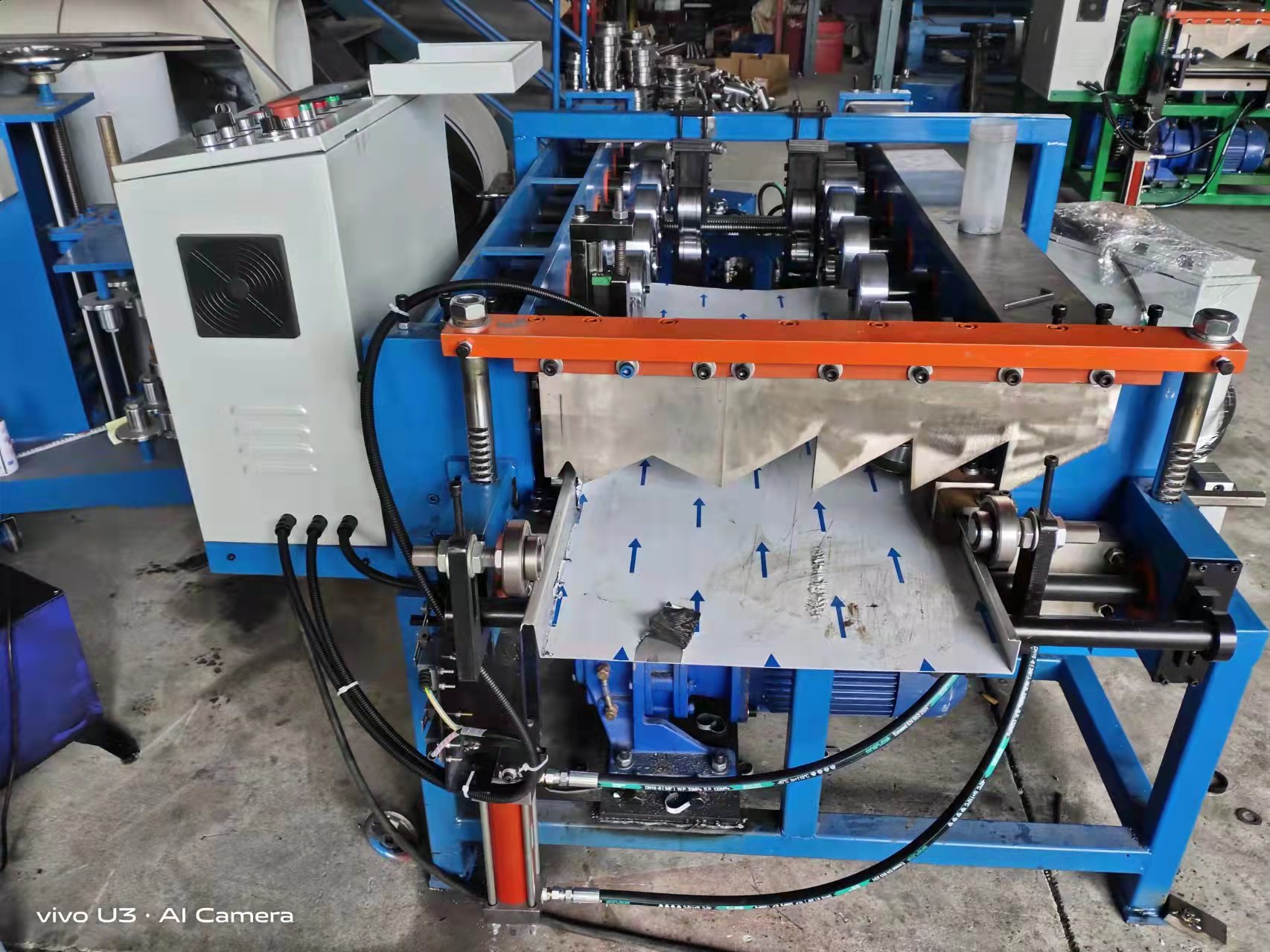

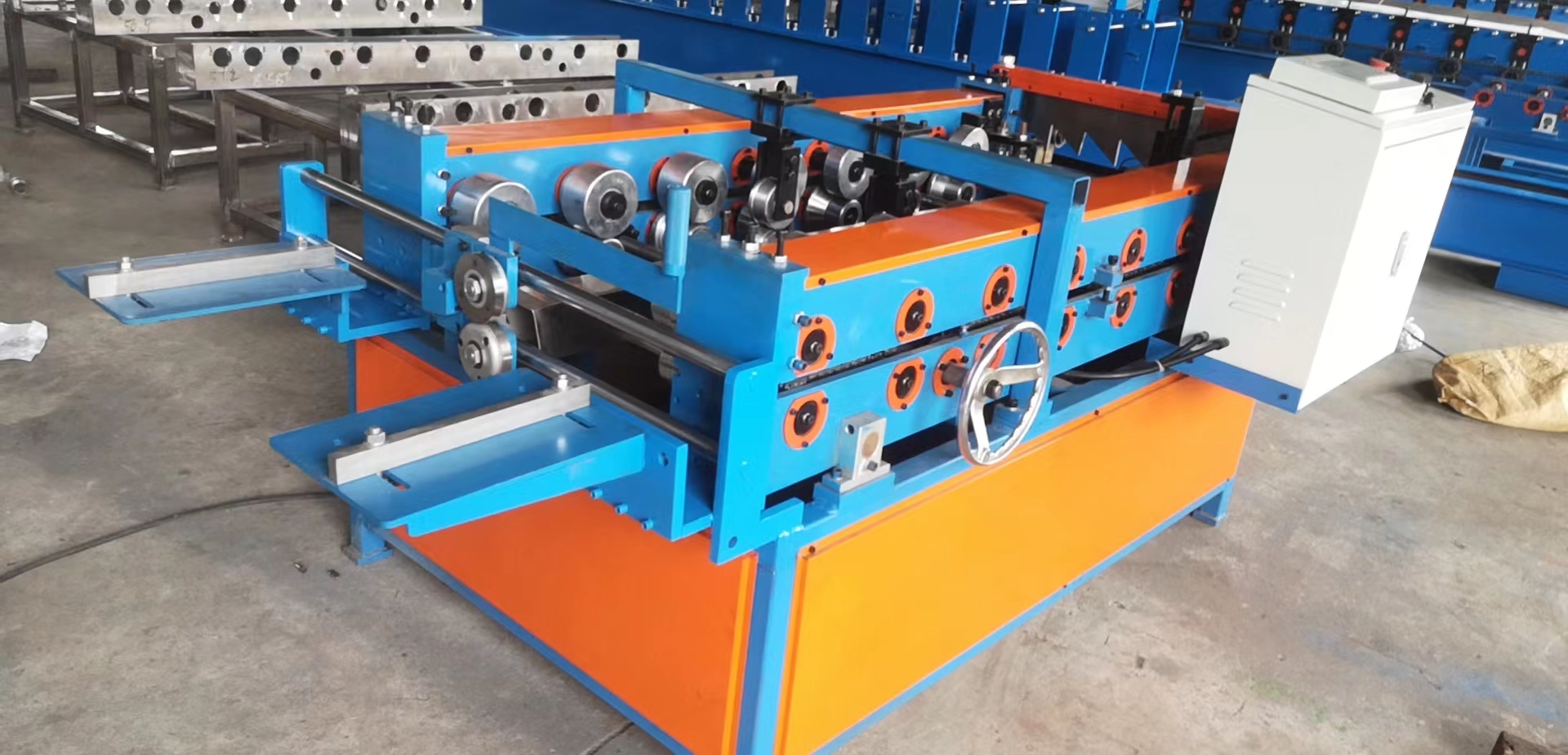

portable standing seam forming machine
Technical Parameters
Main motor power | 4kw |
Material thickness | 0.35-0.75mm PPGI or GI Aluzinc |

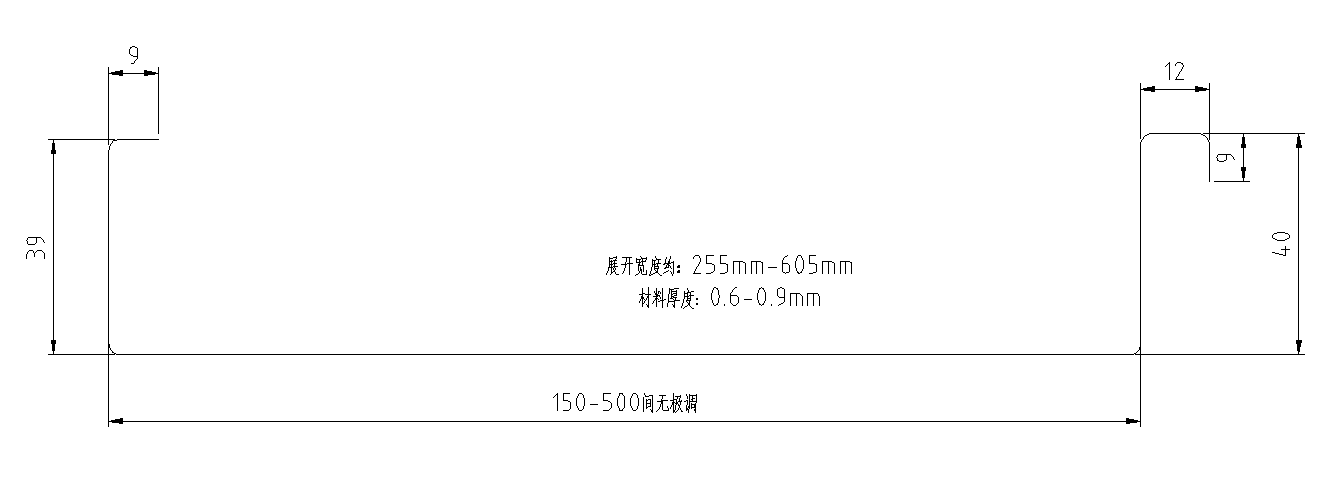

Effective width | As per drawing |
Feeding width | As request |
Hydraulic motor power | 2.2kw |
Forming steps | 8 |
Way of change | Automatically |
Forming speed | 8-10m/min |
Material of blade | Cr12 |
Material of roller | 45# steel ,surface hard chrome plate |
Voltage | 380V/60HZ/3PH |
Dimension of machine | 3.5m*1.5m*1.5m |
Pre punching device | Including mold each 16 inch punch once with 5 holes |
